  Home  >>  Product  >>  F_D-2W Series

F_D-2W Series


Products : FxxyyD-2W

Characteristic parameter :

  • Fixed input voltage , High Isolation, Voltage not stabilization, positive single output. Output power 2 Watt.
  • International standard pin: Lead-free.
  • 14 PIN DIP : Double in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 3000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC.
  • Output voltage: 5VDC/ 9VDC/ 12VDC/ 15VDC.
  • Efficiency high to 86%

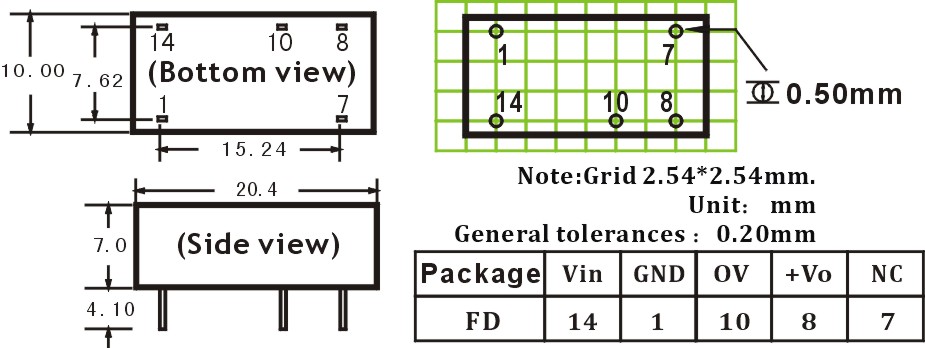

Product overall dimensions : 20.4¡Á10¡Á7.0 (mm)


PDF Download£º FD-2W-En.pdf
