  Home  >>  Product  >>  D_S-1W Series

D_S-1W Series


Products : DxxyyzzS-1W

Characteristic parameter :

  • Fixed input voltage , Double Isolation, Voltage not stabilization, positive- double output. Output power 1 Watt.
  • International standard pin: Lead-free.
  • 7 PIN SIP : Single in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC.
  • Output voltage: 5;5VDC/ 9;9VDC/ 12;12VDC/ 15;15VDC.
  • Efficiency high to 82%

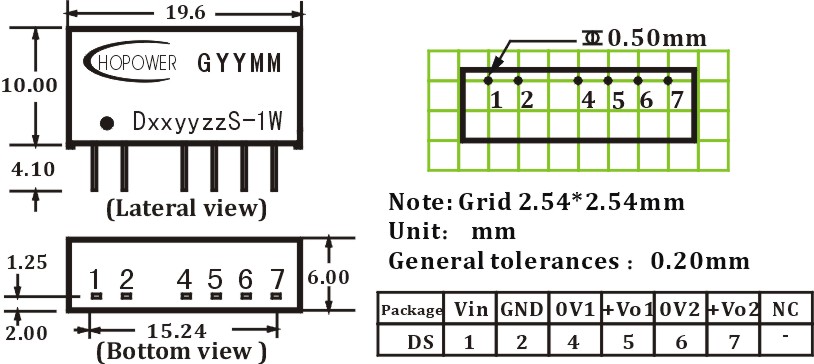

Product overall dimensions : 19.6¡Á6.0¡Á10 (mm)


PDF Download£º DS-1W-En.pdf
