  Home  >>  Product  >>  HAA_D-5W Series

HAA_D-5W Series


Products : HAAxxD-5W

Characteristic parameter :

  • AC/DC Alternating current input voltage , Isolation, Voltage stabilization, positive negative bipolar output. Output power 5 Watt.
  • International standard pin: Lead-free.
  • DIP : Double in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 2500 VAC
  • Input voltage : 5VDC/ 12VDC/ 15VDC.
  • Output voltage: 5VDC/ 12VDC/ 15VDC.
  • Efficiency high to 81%

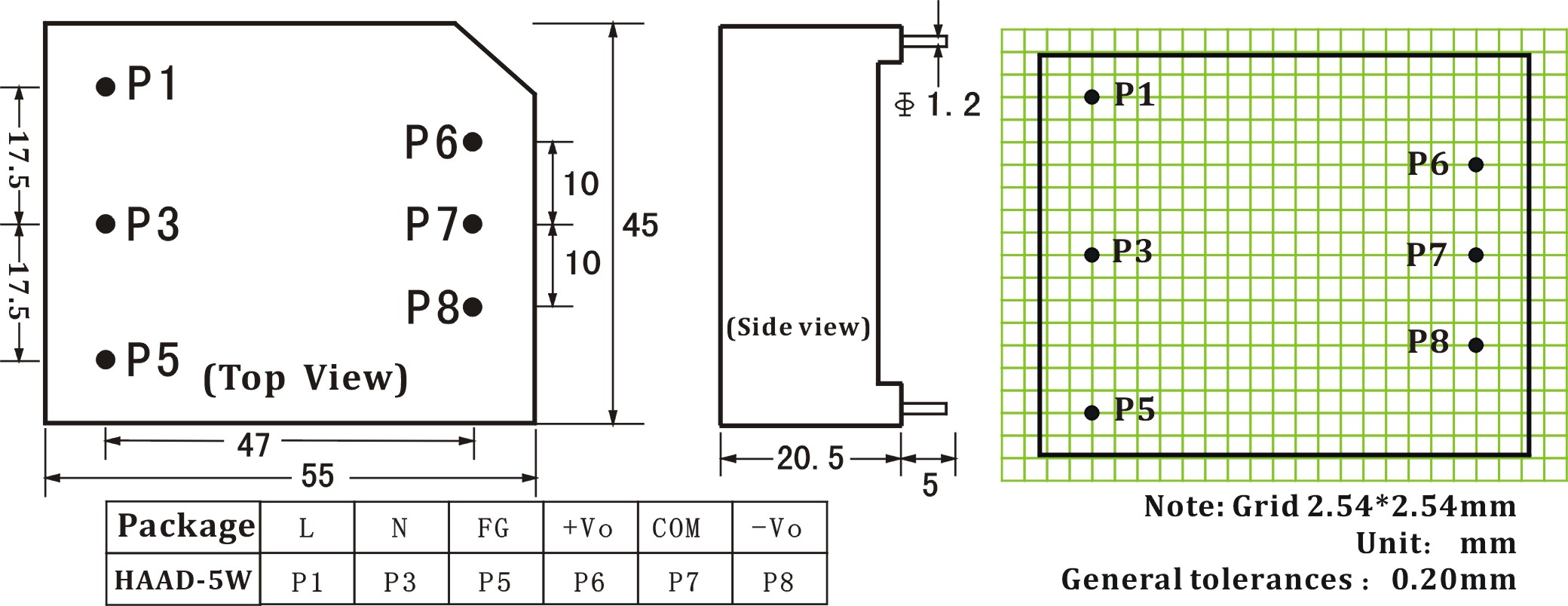

Product overall dimensions : 55¡Á45¡Á20.5(mm)


PDF Download£º HAAD-5W-En.pdf
