HYA_S-2W Series


Products : HYAxxyyS-2W

Characteristic parameter :

  • 1:2 Wide input voltage  , Isolation, Voltage stabilization, positive negative bipolar output. Output power 1 Watt.
  • International standard pin: Lead-free.
  • 8 PIN SIP : Single in-line package.
  • Temperature Range:-40 to +85
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC/ 48VDC.
  • Output voltage: 5VDC/ 9VDC/ 12VDC/ 15VDC.
  • Efficiency high to 82%
  • Short-circuit protection

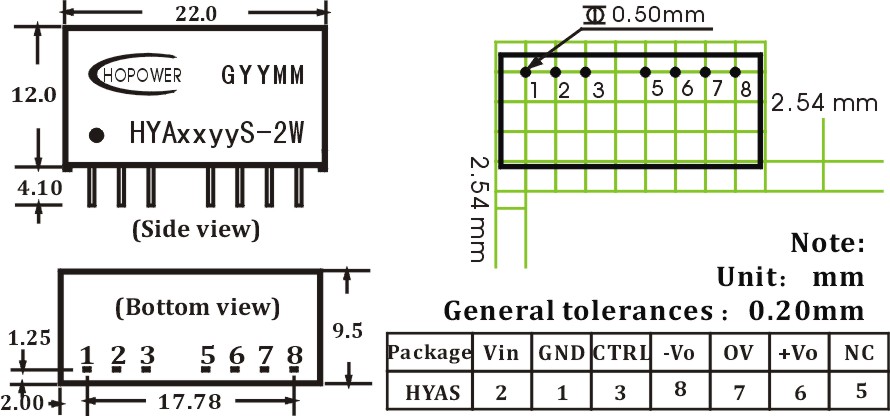

Product overall dimensions : 229.512 (mm)


PDF Download HYAS-2W-En.pdf
