  Home  >>  Product  >>  HYA_S-1W Series

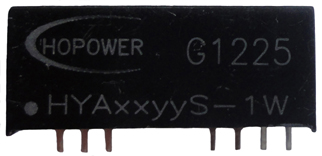

HYA_S-1W Series


Products : HYAxxyyS-1W

Characteristic parameter :

  • 1:2 Wide input voltage  , Isolation, Voltage stabilization, positive negative bipolar output. Output power 1 Watt.
  • International standard pin: Lead-free.
  • 8 PIN SIP : Single in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC/ 48VDC.
  • Output voltage: ¡À5VDC/ ¡À9VDC/ ¡À12VDC/ ¡À15VDC.
  • Efficiency high to 82%
  • Short-circuit protection

Product overall dimensions : 22¡Á9.5¡Á12 (mm)


PDF Download£º HYAS-1W-En.pdf
