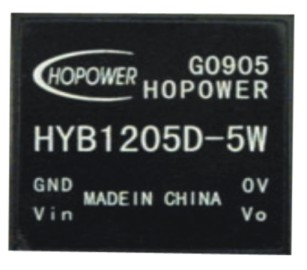

HYB_D-5W Series


Products : HYBxxyyD-5W

Characteristic parameter :

  • 1:2 Wide input voltage  , Isolation, Voltage stabilization, positive single output. Output power 5 Watt.
  • International standard pin: Lead-free.
  • DIP : Double in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 12VDC/ 24VDC/ 48VDC.
  • Output voltage: 5VDC/ 9VDC/ 12VDC/ 15VDC.
  • Efficiency high to 82%
  • Short-circuit protection

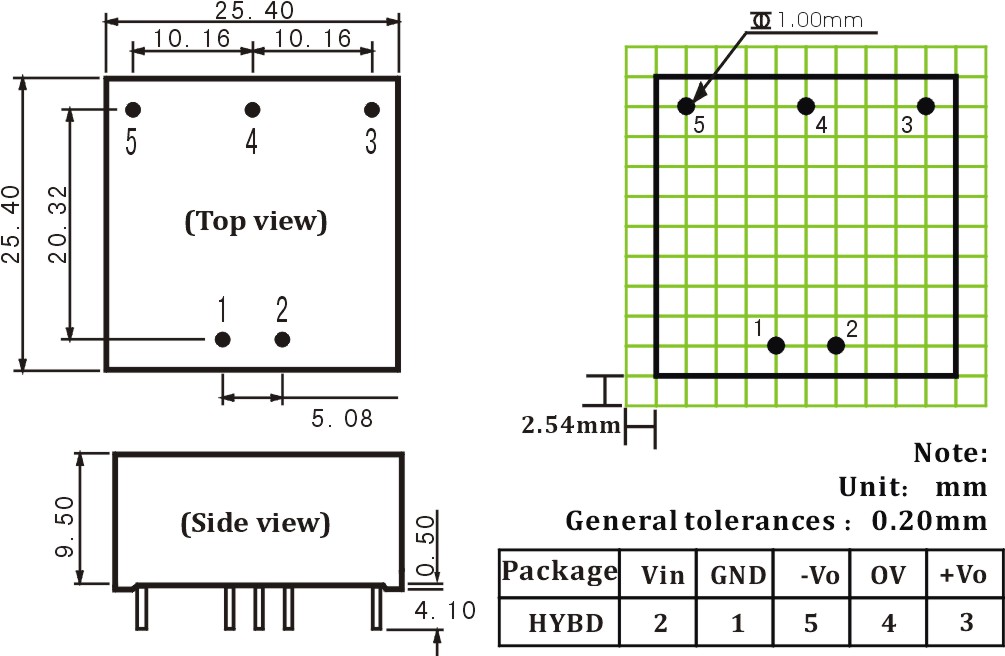

Product overall dimensions : 25.4¡Á25.4¡Á9.5 (mm)


PDF Download£º HYBD-5W-En.pdf
