B_M-2W Series


Products : BxxyyM-2W

Characteristic parameter :

  • Fixed input voltage , Isolation, Voltage not stabilization, positive- single output. Output power 2 Watt.
  • International standard pin: Lead-free.
  • 4 PIN SIP : Single in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC.
  • Output voltage: 5VDC/ 9VDC/ 12VDC/ 15VDC.
  • Efficiency high to 85%

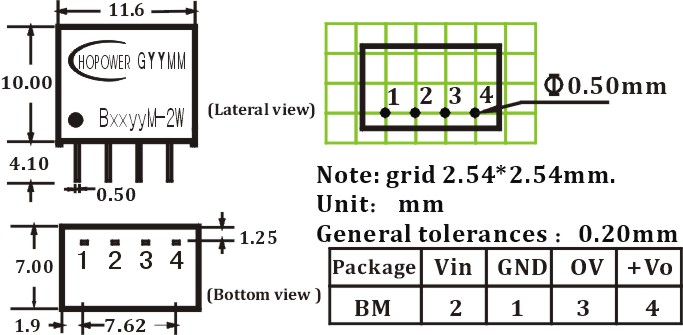

Product overall dimensions : 11.6¡Á7.0¡Á10 (mm)


PDF Download£º BM-2W-En.pdf
