A_D-1W Series


Products : AxxyyD-1W

Characteristic parameter :

  • Fixed input voltage , Isolation, Voltage not stabilization, positive negative bipolar output. Output power 1 Watt.
  • International standard pin: Lead-free.
  • 14 PIN DIP : Double in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC.
  • Output voltage: ¡À5VDC/ ¡À9VDC/ ¡À12VDC/ ¡À15VDC.
  • Efficiency high to 82%

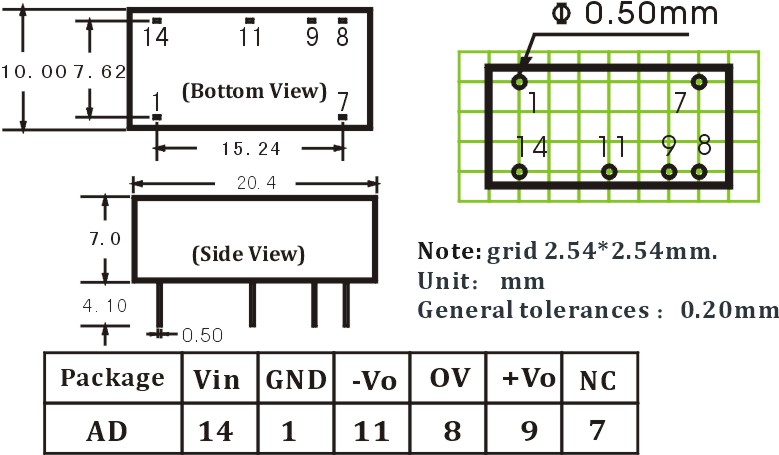

Product overall dimensions : 20.4¡Á10¡Á7 (mm)


PDF Download£º AD-1W-En.pdf
