  Home  >>  Product  >>  HYB_S-1WR Series

HYB_S-1WR Series


Products : HYBxxyyS-1WR

Characteristic parameter :

  • 1:2 Wide input voltage  , Isolation, Voltage stabilization, positive single output. Output power 1 Watt.
  • International standard pin: Lead-free.
  • 8 PIN SIP : Single in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC/ 48VDC.
  • Output voltage: 5VDC/ 9VDC/ 12VDC/ 15VDC.
  • Efficiency high to 86%
  • Short-circuit protection

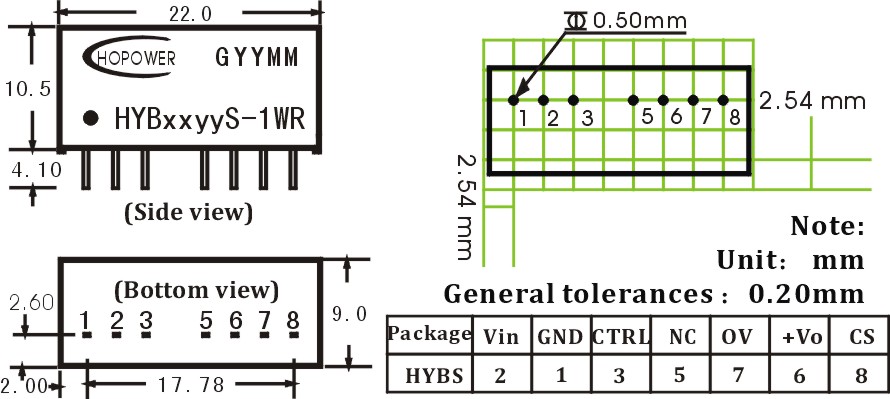

Product overall dimensions : 22¡Á9.5¡Á12 (mm)


PDF Download£º HYBS-1WR-En.pdf
